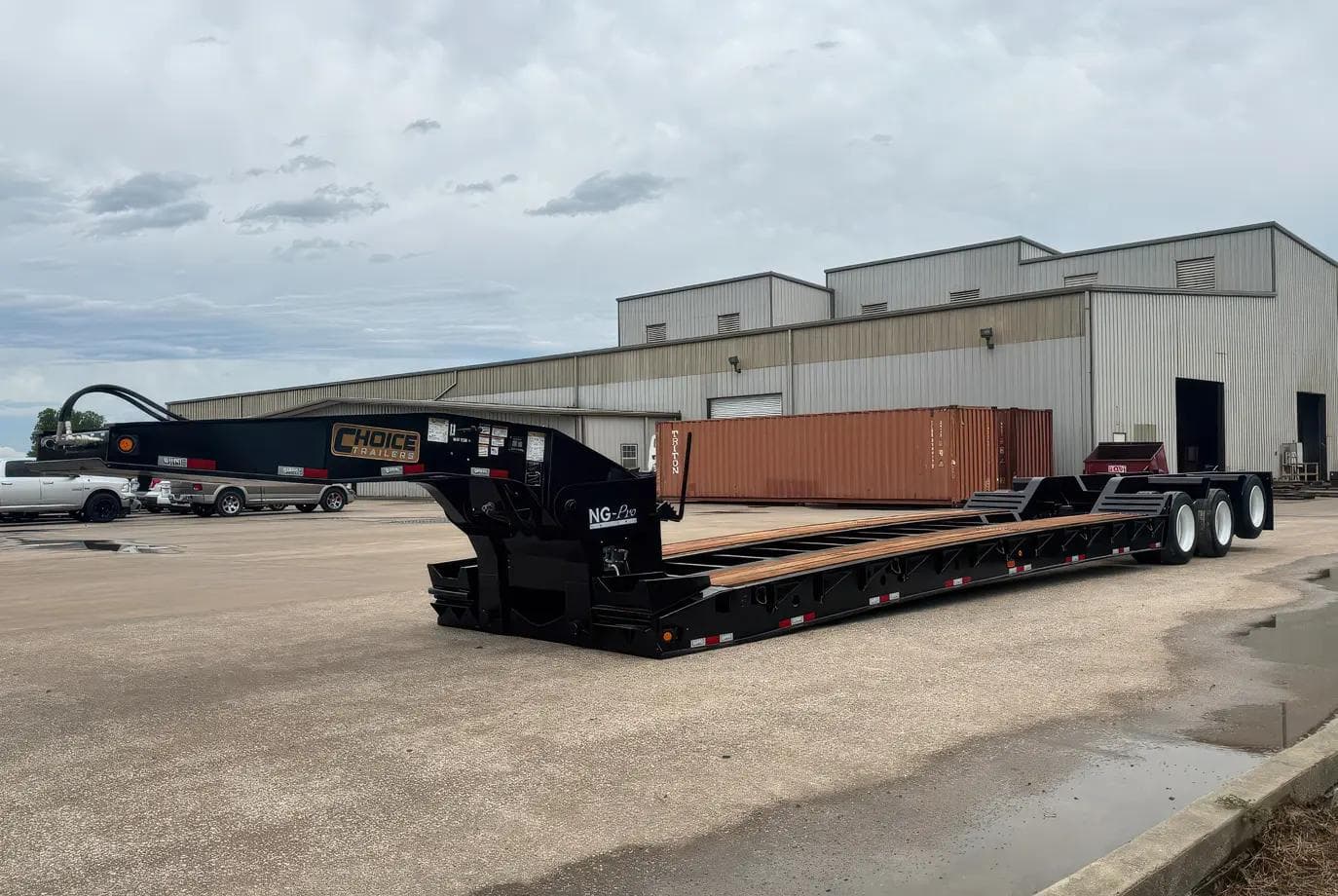

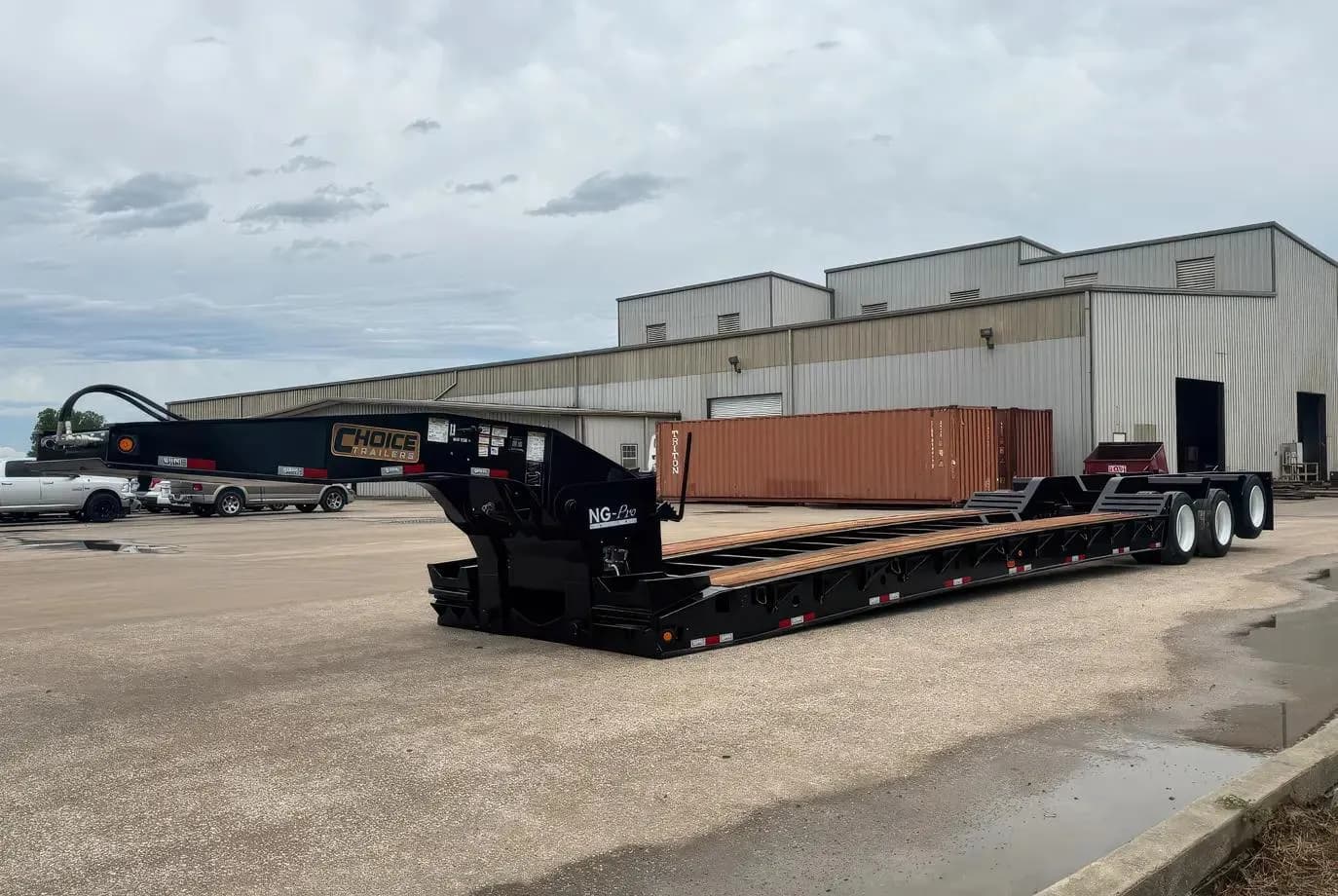

Choice 355NG Base Model – Lowboy, 53', 55-Ton

Choice 355NG Base Model Lowboy trailer with 3-Axle non-ground bearing design and 110,000 lbs capacity.

Key Specs

• Overall Length: 53'
• Overall Width: 102"
• Capacity: 110,000 lbs
• Axles: 3-Axle
• Design: Non-ground bearing

Tub Construction

• Main Deck Construction: 4-beam fully cambered fabricated 100 KSI high-tensile T1 steel
• Deck Length: 26'
• Decking: Raised Apitong flooring; center deck open standard
• Rear Deck: Bolster style, open wheels standard
• Tool Tray: Expanded metal at front of main deck
• Bucketwell & Boomwell: Recessed cutouts at rear of main deck and over axles
• Ramps: Front folding style with traction cleats for tracked equipment
• Outriggers: Heavy-duty pull-out & removable 12" swing-type, evenly spaced
• Lashing Rings: 1" forged bent D-rings, evenly spaced
• Flag Holder Slots: One pair front of load bed, one pair on rear bumper
• Flip Axle Prep: Reinforced sub-frame with connections included

Hydraulics & Control

• Gooseneck Type: Low-profile scraper, arched, hydraulic detachable, non-ground bearing, air-actuated locking pin
• Hydraulic Lift Cylinders: Two (2), control valve on driver's side of gooseneck
• Hydraulic Power: Runs off wet kit (5–12 GPM requirement)
• Hydraulic Neck Support: Yes
• Adjustable Ride Heights: Yes, 5 positions

Axles & Suspension

• Suspension: Air-ride, 25,000 lb capacity with automatic ride height controls, manual override, raise/lower valve
• Axles: 25,000 lb nominal, oil-lubricated hubs, 77.5" track width; axle spacing 55"
• Lift Axle: Standard on third axle
• King Pin Settings: 34" & 16"
• Swing Clearances: 108" & 90"
• Loaded Deck Height: 22" with 6" ground clearance; adjustable

Wheels & Tires

• Wheels: Steel disc, hub-piloted, white
• Tires: 255/70R22.5 Load Range H, 16-ply steel-belted radial
• Brakes: 16 ½" x 7" drum brakes, 4S2M ABS, automatic slack adjusters, 30-30 chambers

Lighting & Safety

• Electrical System: DOT-approved sealed 12 V
• Lights: LED with 3 tail lights per side and mid-turn signals
• Strobe: 4" amber strobe light

Finish & Options

• Paint: Sandblasted, epoxy primer & polyurethane topcoat, black
• Options: 13 HP Honda unit at gooseneck base with dual hydraulics; 8.25 x 22.5 10-hole aluminum polished wheels
